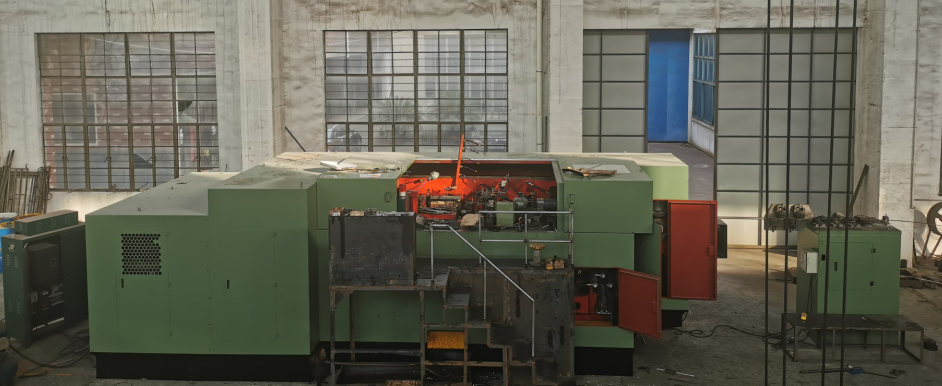

Bolt Machine

Module:

Maximum cutting diameter:

Maximum cut length:

Back tip length:

Front tip length:

Cutting die (Φ X length) :

Main Die (Φ X length) :

Center distance of main Die:

Punching die size (Φ X length) :

Main skateboard stroke:

Compressive strength (ton) :

Maximum production specifications:

Maximum length:

Minimum length:

Maximum capacity per minute (only/minute):

The main motor:

Lubricating oil motor:

Lubricating oil consumption:

Mechanical weight:

Floor area (length x width) :

4

20 mm

355 mm

305 mm

60 mm

60 x100mm

100 x360mm

126 mm

75 x232mm

500 mm

190 ton

M16, 5/8″

305 mm

100 mm

45 PCS/MIN MAX

The 100 HP

4 HP

1000 Liter

60000 KGS

8060 mm x 3620 mm
